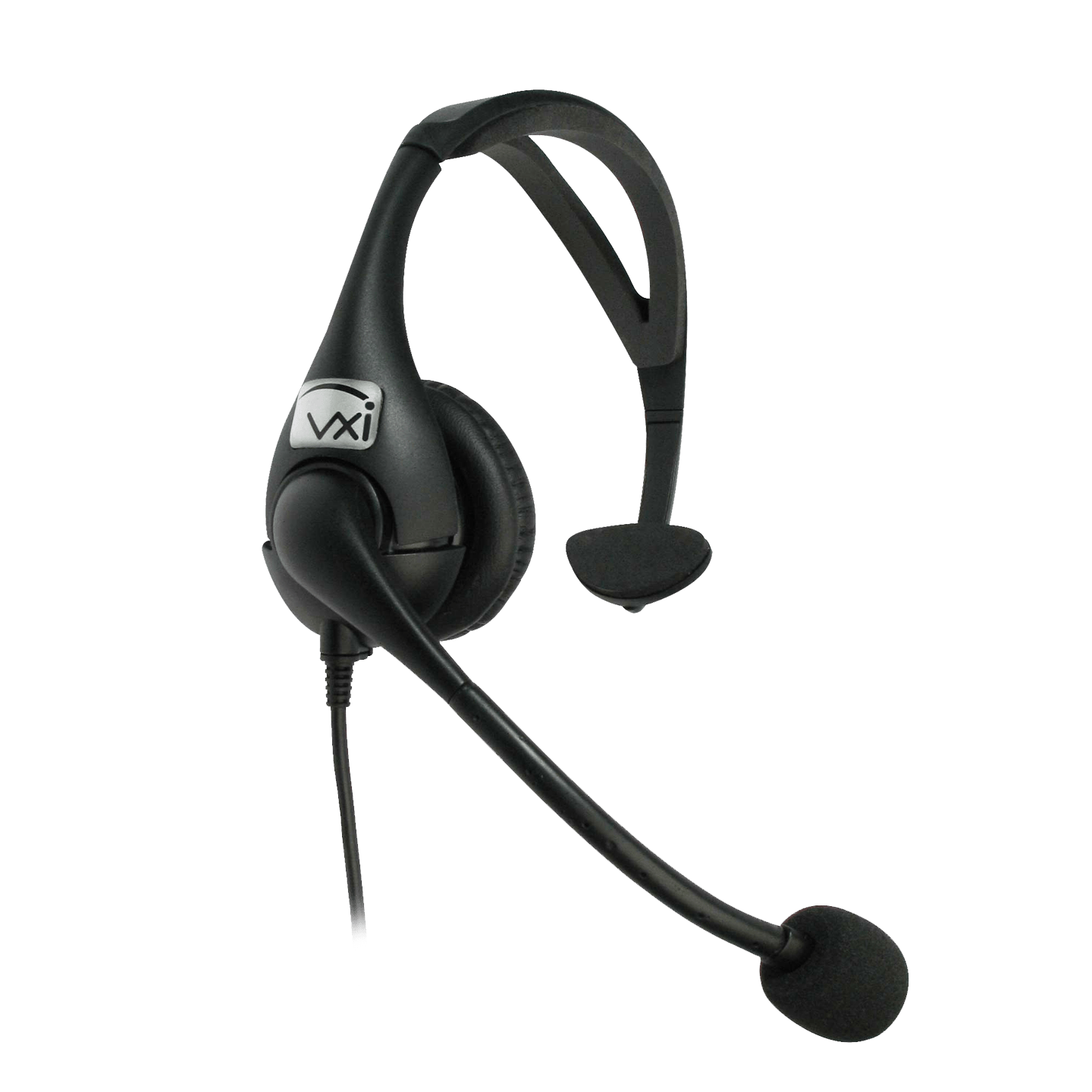

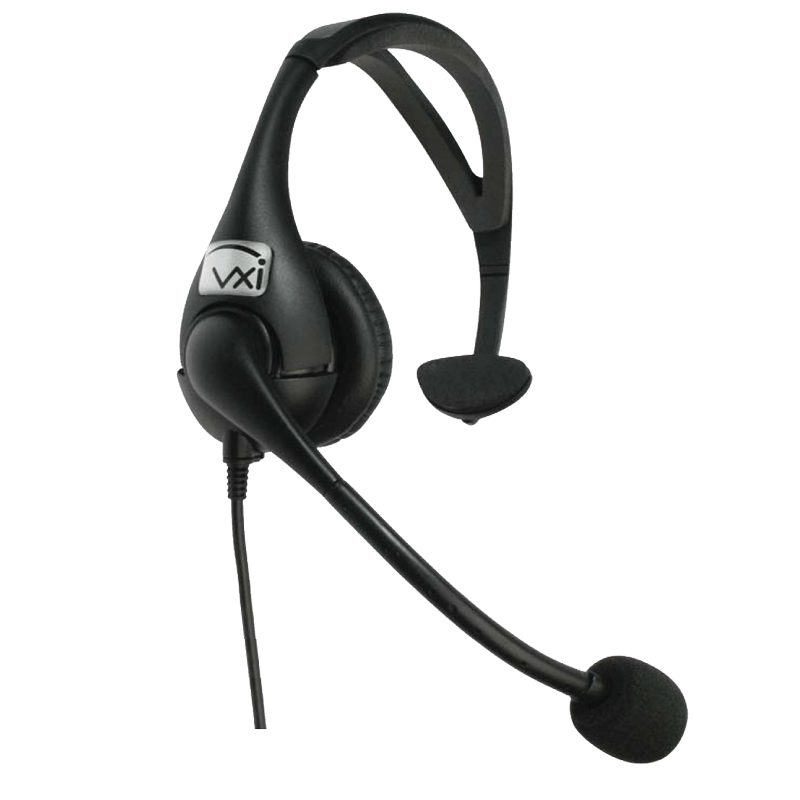

BlueParrott VR12 Convertible Headset













Technical Specifications

  • Warranty
    One-year warranty
  • Drop Specification
    Multiple 6 ft. (1.8 m) drops to concrete across the operating temperature range
  • Tumble Specification
    500 3.28 ft. (1 m) tumbles (1,000 hits) at room temperature
  • Operating Temperature
    VR12: 41° F to 122° F (5° C to 50° C)
    VR12F: -22° F to 122° F (-30° C to 50° C)
  • Storage Temperature
    -40° F to 122° F/-40° C to 50° C
  • Sealing
    VR12F: IP54 sealing
  • Microphone
    Low distortion, noise-canceling electret
  • Distortion
    <3% THD @ 120 dB SPL
  • Frequency response (Microphone)
    50 Hz to 10 kHz
  • Sensitivity
    -54 dB @ 1 kHz at 1” from talk side, VXi reference signal
  • Current consumption
    300 mA max
  • Operating voltage
    DC 1.2 V min. to 20 V max
  • Speaker
    36 mm diameter Mylar
  • Sensitivity
    112 dB ± 3 dB/1 mW
  • Impedance
    300 Ω
  • Frequency response (Speaker)
    300 Hz to 5 kHz
  • Rated power
    40 mW continuous, 100 mW peak
  • Cables
    Stranded wire, PVC insulation, polyurethane jacket
  • Microphone boom
    Flexible, with positioning memory; swivels 270°
  • Mounting
    Headband - Left or right ear placement.
    Neckband - Left ear placement
  • Headband
    Padded, stainless steel, adjustable; ratchet positioning

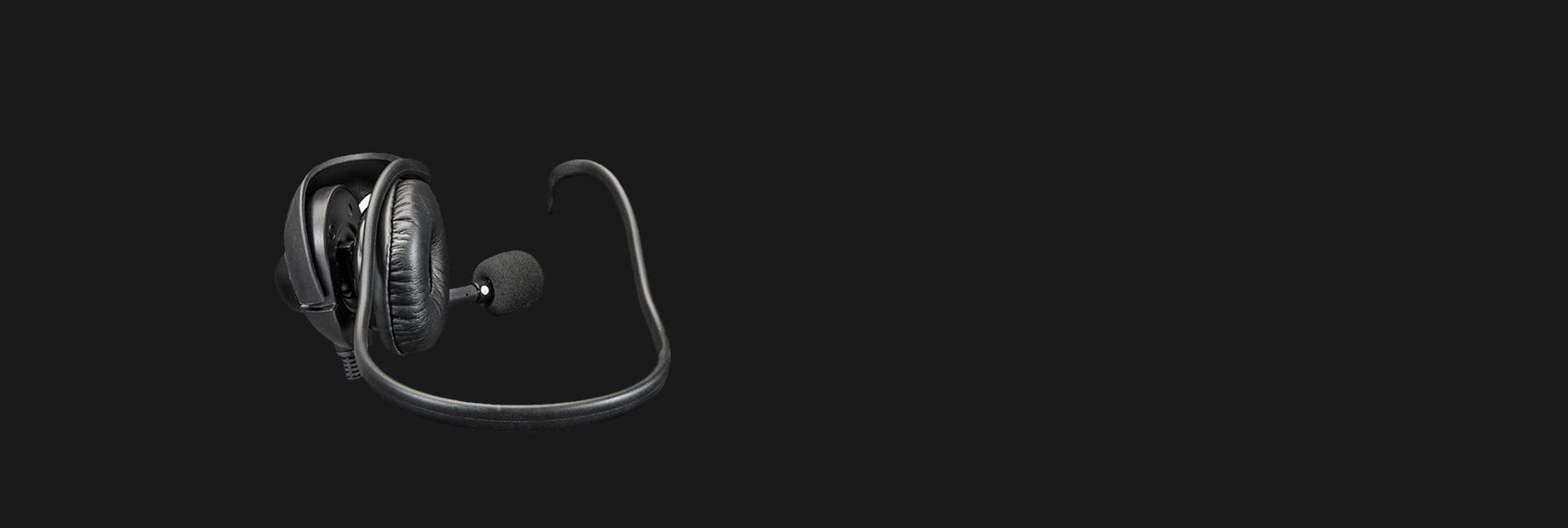

  • Neckband
    Nylon, for left-ear mount only
  • Headset Weight
    VR12/VR12F on headband (no cord): 3.104 oz. (88 g)
    VR12/VR12F with headband and cord: 3.77 oz. (107 g)
    VR12/VR12F on neckband (no cord): 2.176 oz. (62 g)
    VR12/VR12F with neckband and cord: 2.816 oz. (80 g)

Downloads

Name
Download

Datasheet

US

Technical Specification

US

Quick start guide

US

Accessories
